Metal Pall Ring

Product Description

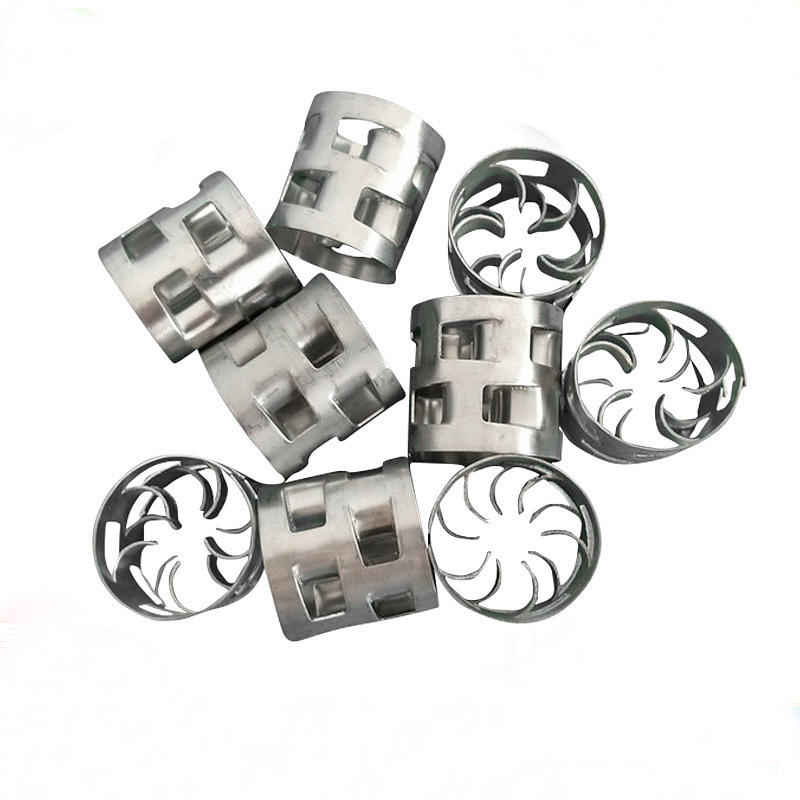

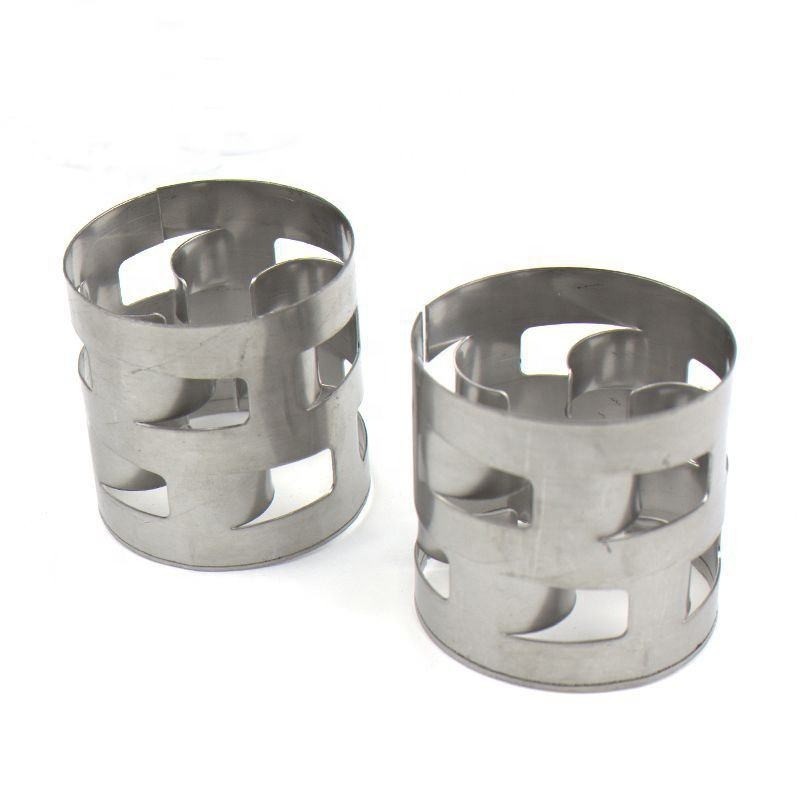

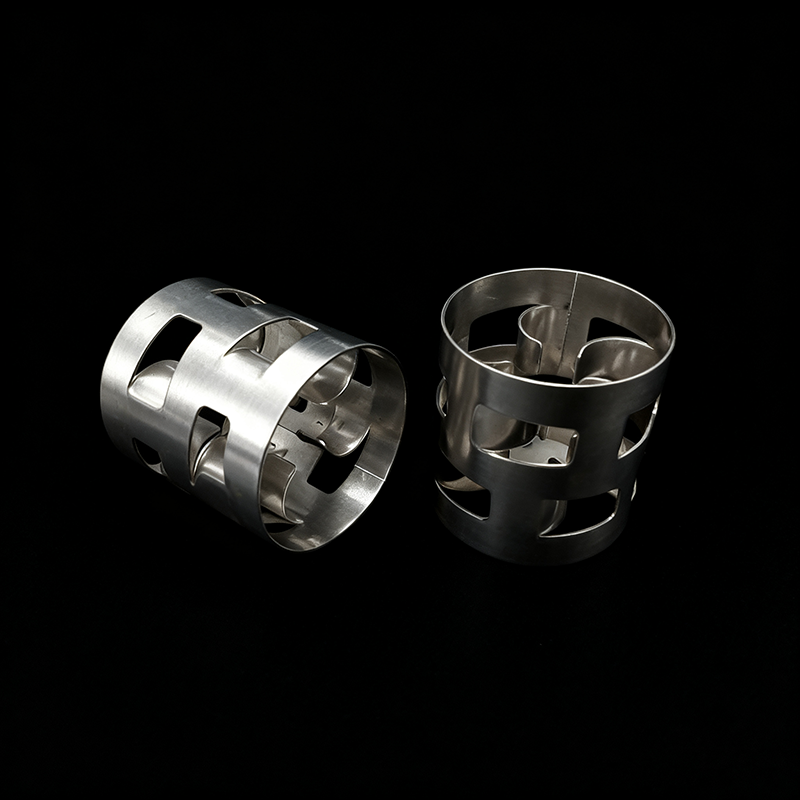

The metal Pall ring packing is made of metal sheet, and two rows of window holes with protruding tongue blades are opened on the ring wall. Each row of window holes has five tongue leaves, each tongue leaf curved to the ring, pointing to the center of the ring, almost overlapping in the center, the position of the upper and lower layers of window holes staggered each other, the total area of the general hole is about 35% of the entire ring wall area.It is widely used in All kinds of separation, absorb plants, constant decompress plants, compounding ammonia plant, decarbonization , desulfuration ,separation of ethylbenzene, separation of isooctane/ methylbenzene, Absorption, Aeration, Degassing, Desorption, Distillation, Stripping, Heat Recovery, Extraction, Various separation and absorption applications at atmospheric pressure and under vacuum, where a low pressure drop is critical,H2S, NH3 & SO2 Absorption & Stripping, Steam Stripping, Quench towers, Direct contact cooling.

Features:

1. Higher loading capacity and throughput with minimal pressure drop

2. Easily wettable compared to its plastic counterpart

3. Higher mass transfer efficiency and better liquid/gas distribution

4. Excellent mechanical strength, for longer life and improved reliability
