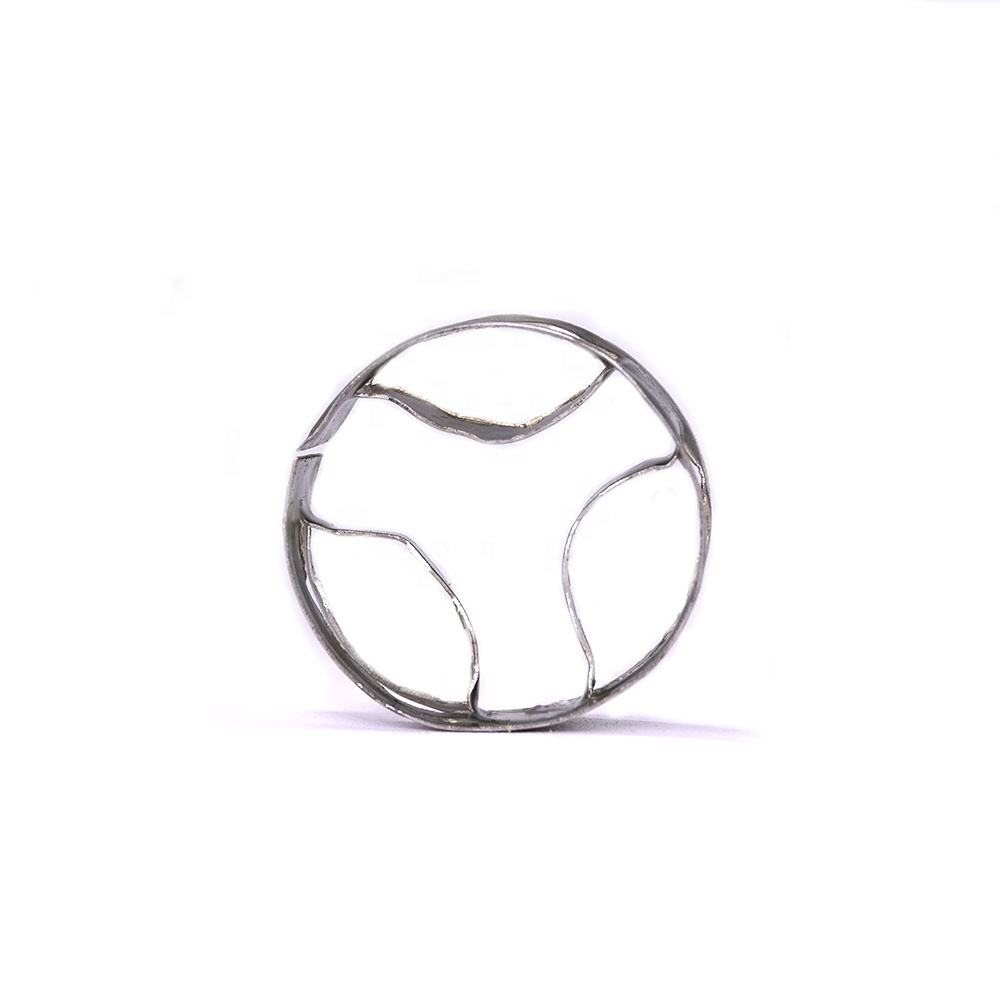

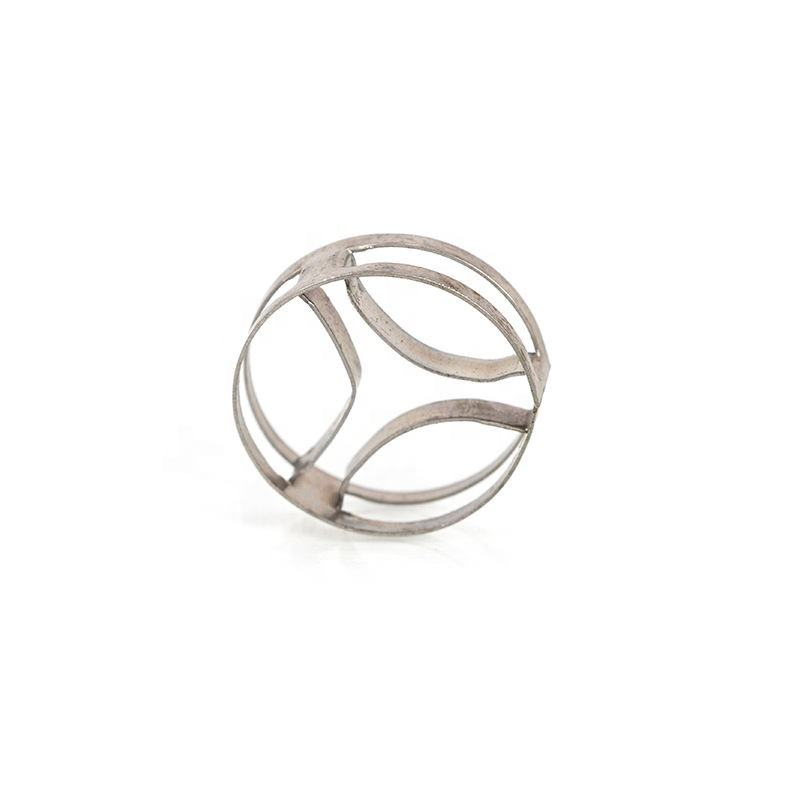

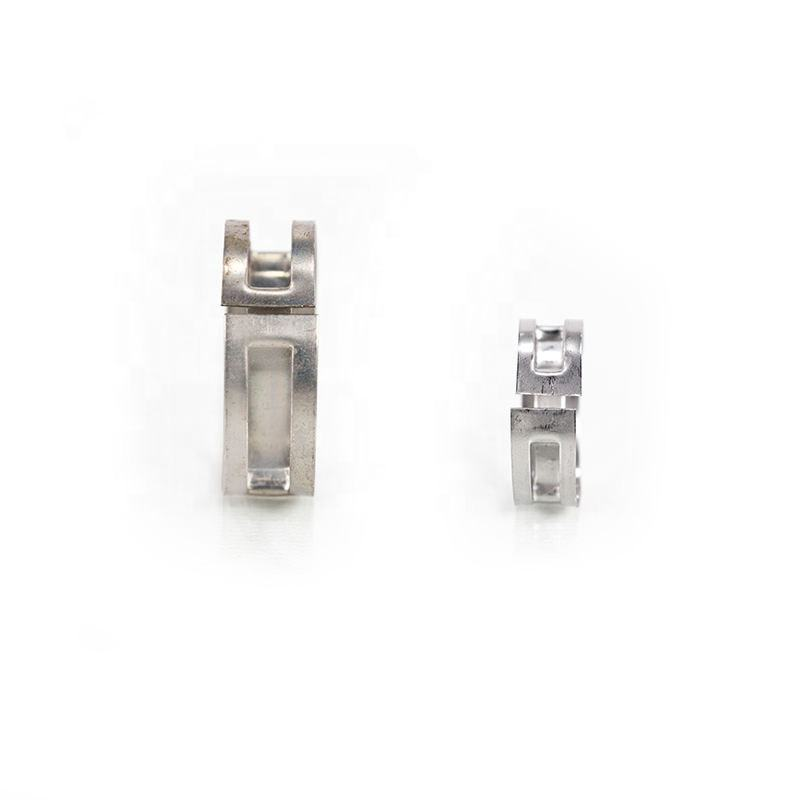

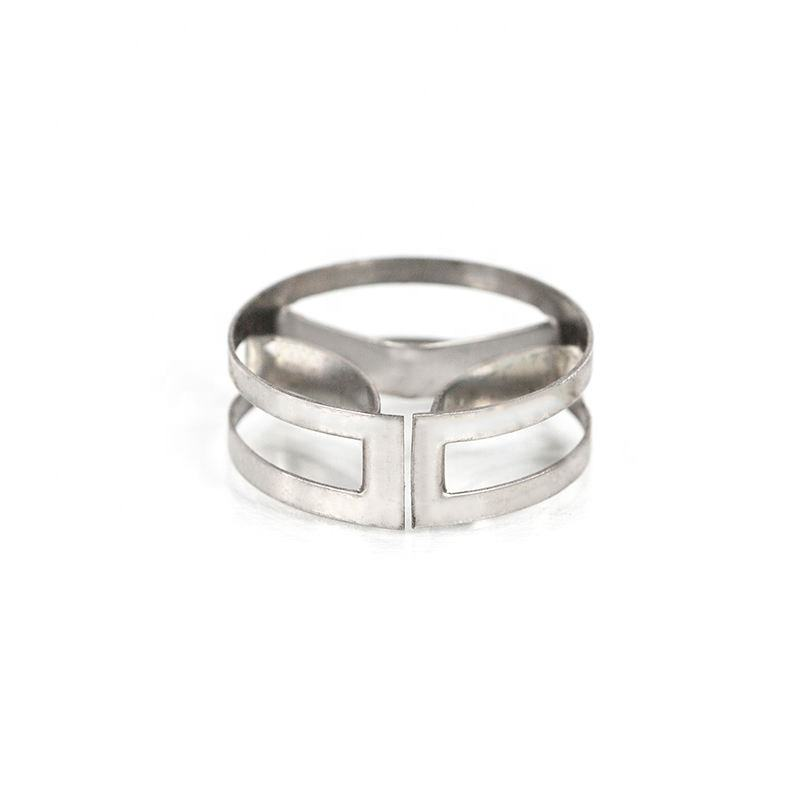

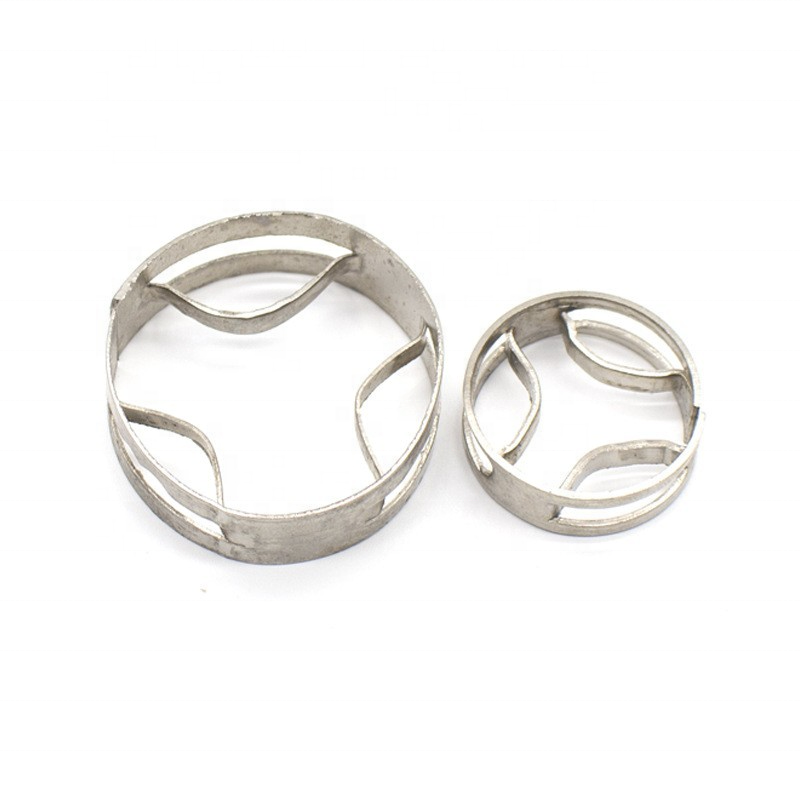

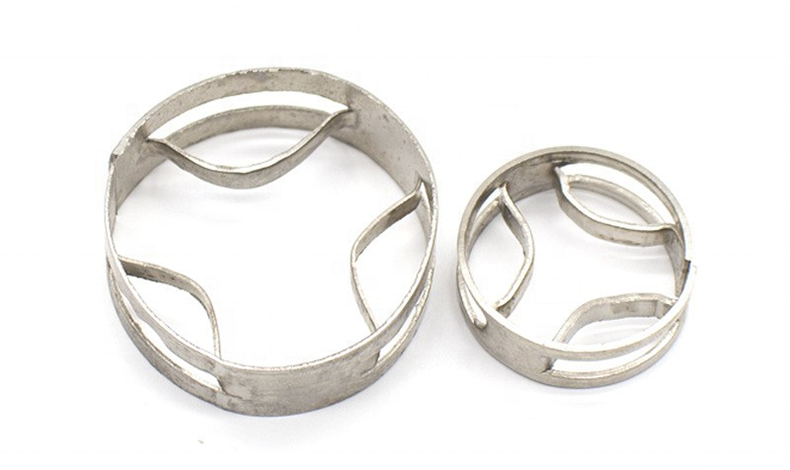

Metal Mini Flat Ring

Product Description

Metal flat ring(SMR or named Metal super mini ring ) random tower packing, is especially suitable for relative flow movement of liquid-liquid phase, and lessens agglomeration of dispersed droplet cluster. The mode of symmetrical inflexed arced fins will have good impact on the flowing homogeneity of liquid, promote the cyclic process of dispersion, convergence and redispersion of droplet cluster, effectively reduce the axial back-mixing of packing layer, and improve the mass transfer efficiency of liquid to liquid. Therefore, the packing will obtain excellent technological and economical effects in extraction process of liquid-liquid mass transfer.

Features:

1. Heat resistance

2. Thin wall

3. Large gap and flux

4. High separation efficiency

5. Low resistance
