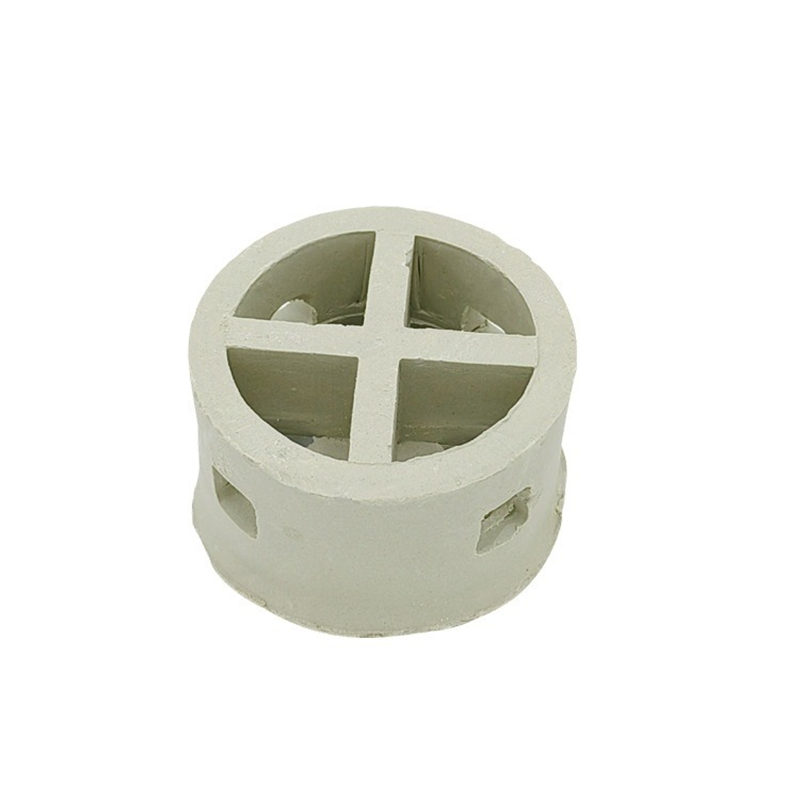

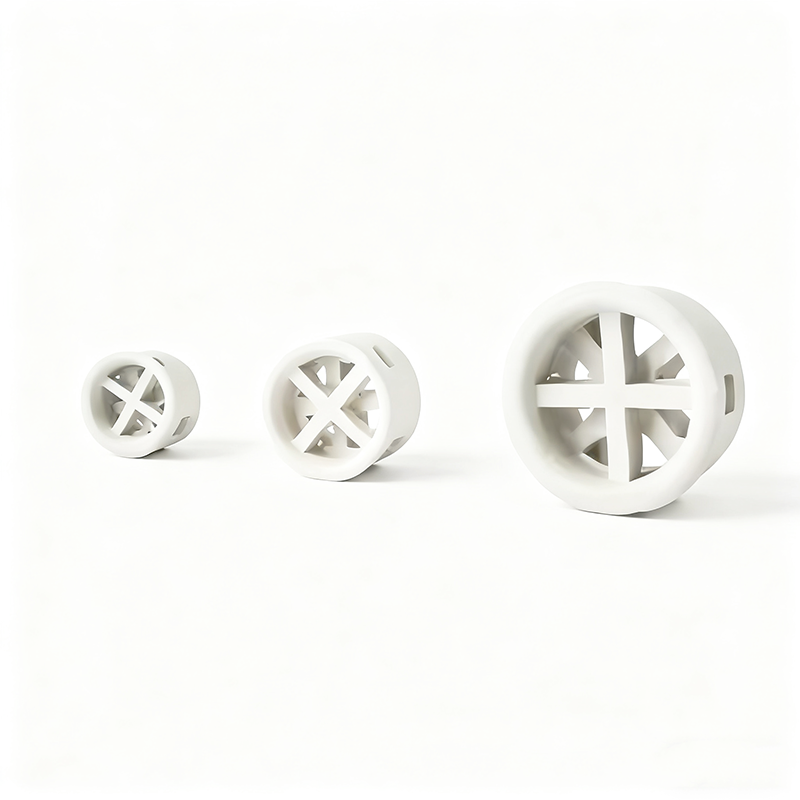

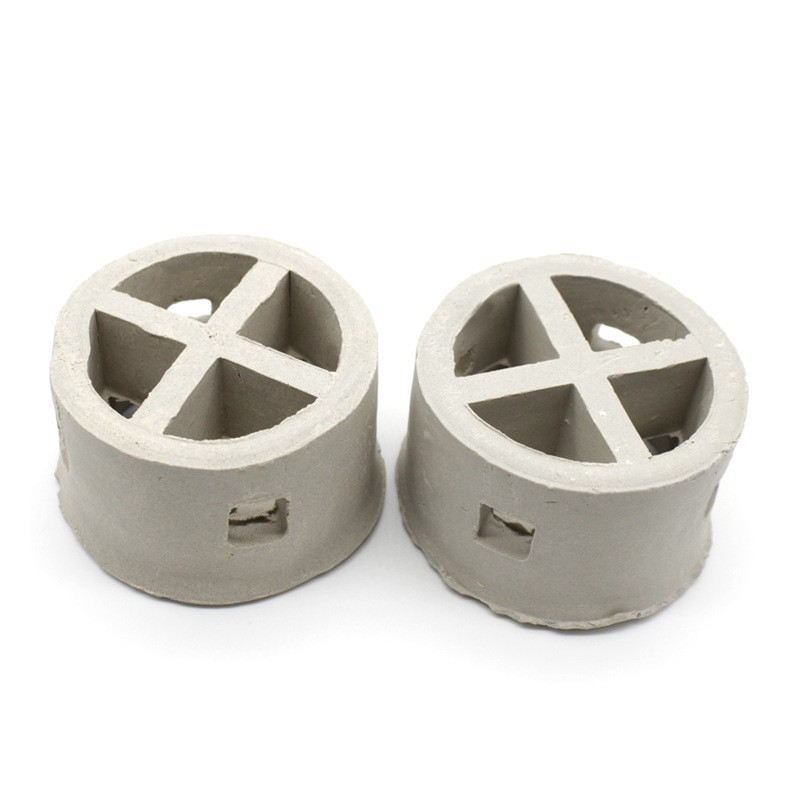

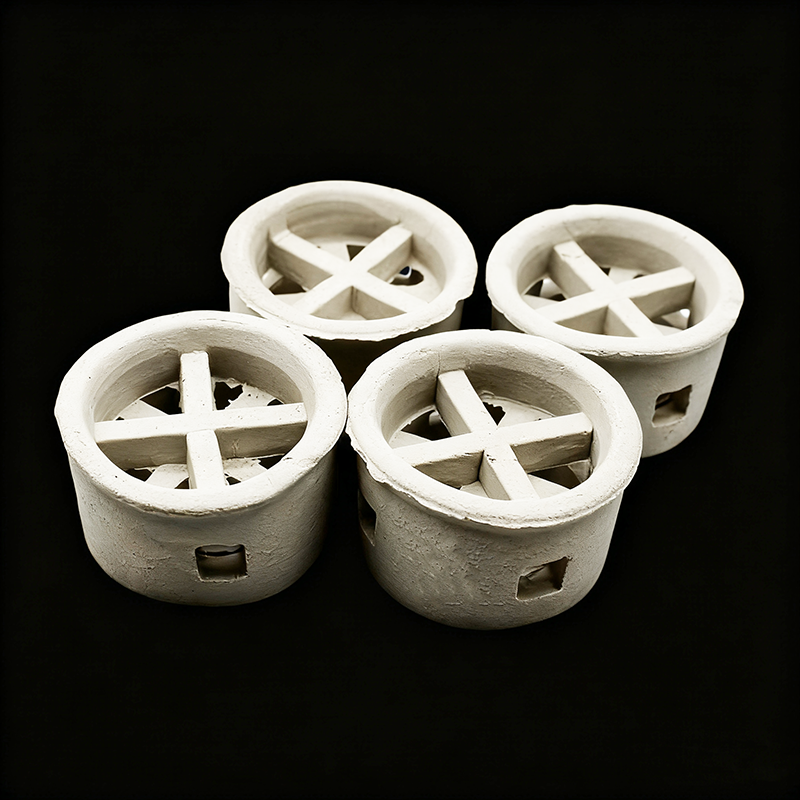

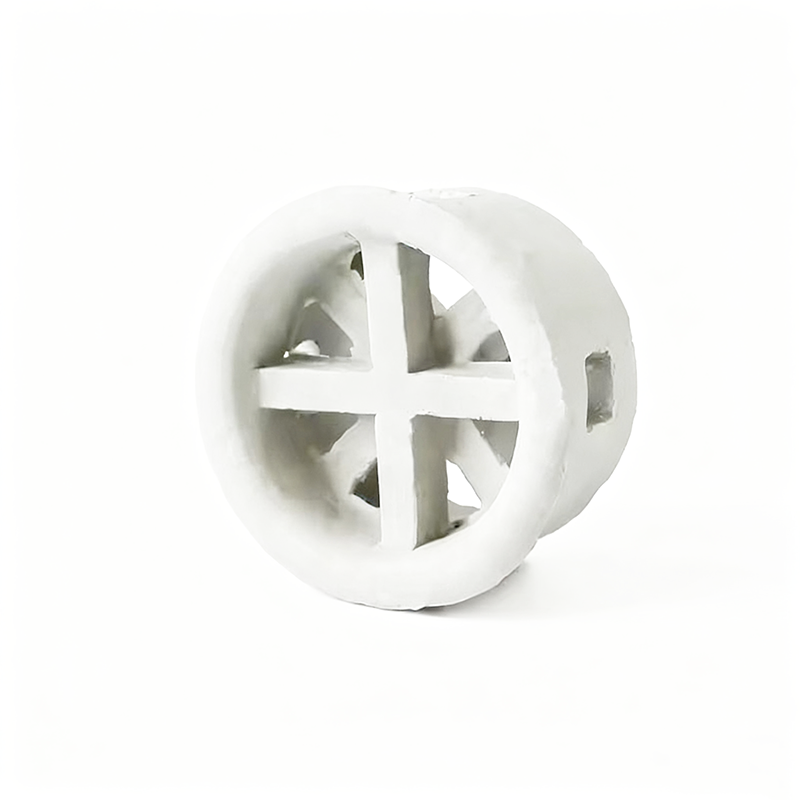

Ceramic Cascade Ring

Product Description

Ceramic Cascade ring is a new type of high-efficiency annular perforated packing, with a height of about half the diameter. One side of the ring has a conical flange, and four high holes are evenly distributed on the ring wall. The unique structural design makes the packing mainly point contact when stacked, which not only increases the porosity of the packing, reduces the airflow resistance, but also greatly improves the gas-liquid distribution performance in the packing layer. The center of the cascade ring has two layers of cross shaped fins, with the upper and lower fins staggered at a 45 degree angle, suitable for carbon dioxide degassing towers and synthesis tower packing.

Features:

It has the characteristics of large clearance rate, not easy to plug, large flux and small resistance. Due to the high amount of stagnant liquid in the gap of the filler, the liquid residence time in the tower can be longer, so as to increase the gas-liquid contact time and improve the efficiency.
